2021
BASS TRACKER Classic XL
View Catalog
BASS TRACKER Classic XL
w/ 40 ELPT FourStroke Mercury
Boat, Motor, Trailer & Upgraded Cover ALL INCLUDED
Sold
Apply for Credit
Schedule an Appointment Got a Trade-In? Assess its Value
Photos may show optional equipment.
Specs and features subject to change without notice.
2021 BASS TRACKER® Classic XL Mod-V boats Tracker Aluminum fishing boats Exclusive Auto Marine

Description



LIKE WHAT YOU SEEThe TRACKER® BASS TRACKER® Classic XL is a value-packed, all-welded aluminum boat that brings back the good ol' days of the original TRACKER boats. It’s rigged and ready to help you and your family make memories that will last for generations to come.

The Classic XL is outfitted with a Minn Kota® trolling motor, Lowrance® color fishfinder and custom-matched GALVASHIELD® Impact trailer, so you can head straight to the lake. And like every all-welded TRACKER, it’s backed by the TRACKER PROMISE—the best factory warranty in aluminum boats.

icon

Specs & Layout

SpecificationsSpecifications
Transom Height 22.5''  Length 16' 8''
Deadrise At Bow 13 degrees  Beam 6' 5''
Deadrise At Transom 6 degrees  Bottom Width 4' 6''
Hull Material 0.100 5052 marine alloy  Max. Recommended HP 50 HP
Average Dry Weight 780 lbs.  Fuel Capacity 6 gal.
Average Package Weight 1705 lbs.  Max. Person Capacity 3 persons
Package Height 6'  Max. Person Weight 555 lbs.
Package Width 6' 8''  Max. Person, Motor & Gear Weight 1025 lbs.
Towing Length 23' 2''  Interior Depth 15''
Storage Length (w/Outboard Trimmed Down) 20' 1''

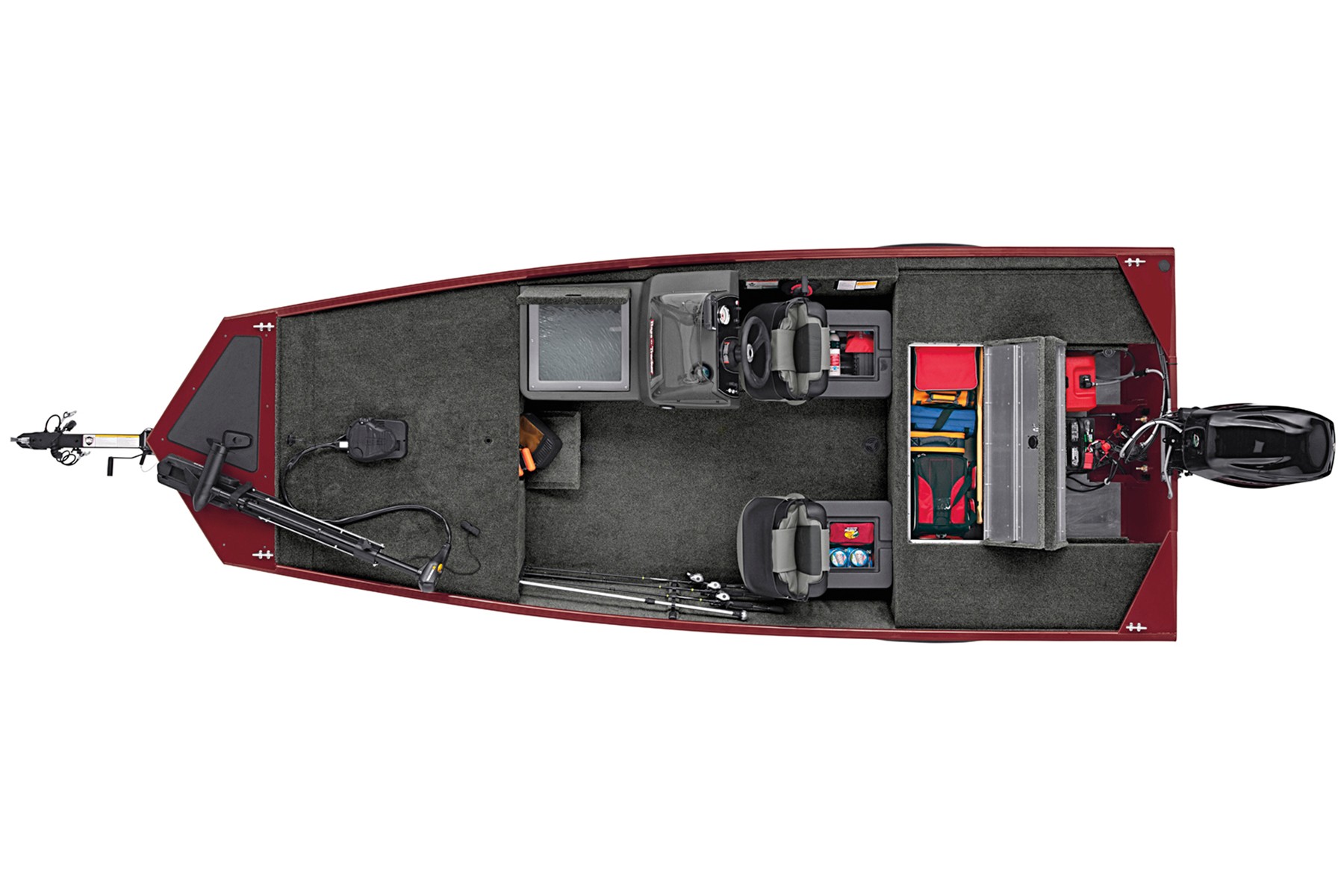

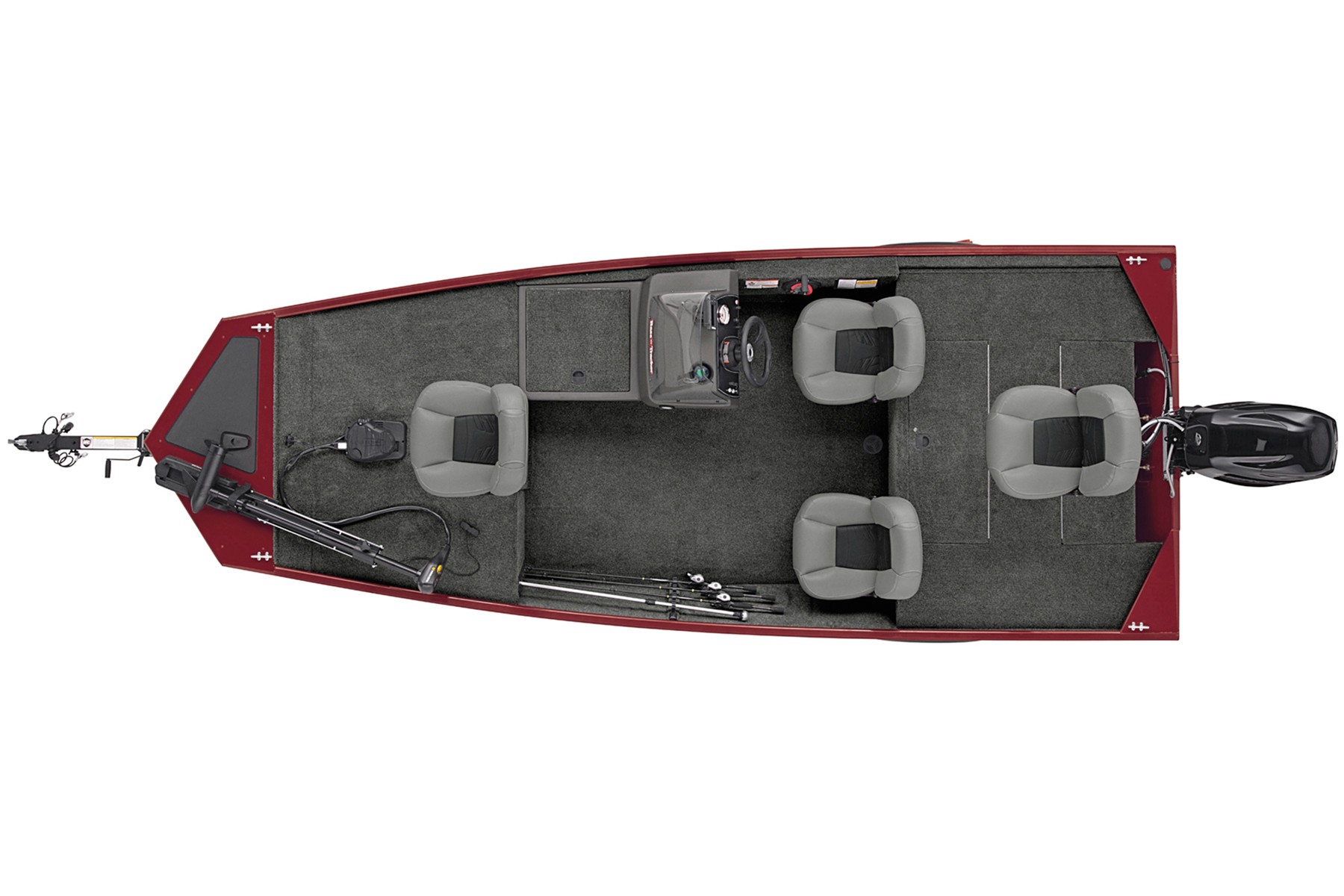

Move pointer over boat to open/close compartments.
2021 BASS TRACKER® Classic XL Mod-V boats Tracker Aluminum fishing boats Exclusive Auto Marine
2021 BASS TRACKER® Classic XL Mod-V boats Tracker Aluminum fishing boats Exclusive Auto Marine

Features

Comfort, Convenience & Peace of Mind
  • Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
  • Limited lifetime hull warranty
  • Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
  • Bow & stern eyes
  • 4 cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
  • Paddle
Livewell Systems
  • 9-gal. (34.07 L) aerated livewell molded into front of console
  • 500 GPH (1,892.71 LPH) aerator/fill pump
  • Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
Trolling Motor
  • Minn Kota® Edge® 12V, 45-lb. (20.41 kg) thrust, 45" (1.14 m) shaft, foot-control trolling motor
  • Thru-bolted trolling motor mount for durability
Console
  • Lowrance® HOOK2 4x swivel color fishfinder w/transducer
  • Sport steering wheel
  • Single-cable, no-feedback rotary steering
  • 1-piece rotomolded console w/tinted windscreen, drink holder, 12V outlet & integrated livewell
  • Midnight Lazer switch panel
  • Mercury® control box
  • Navigation lights, aerator & bilge switches
Interior
  • Elevated bow & aft casting decks w/storage below bow deck
  • 2 pedestal seat base locations
  • 100% composite fishing seats w/contoured hinges & snap-off cushions
  • 2 folding fishing seats
  • Driver & passenger seats w/storage below
  • Port side rod holders w/organizer for 4 rods to 7' (2.13 m)
  • Aft deck storage
  • 16-oz. (.45 kg) marine-grade, fishing-friendly carpet throughout
Performance
  • Pressed-in keel & strakes for optimal performance
  • Factory-matched, performance-tested aluminum propeller
Construction & Exterior
  • Color: DIAMOND COAT™ Black Diamond or Royal Red gunnels & sides w/Starlite Gray bottom
  • NEW DIAMOND COAT™ 2.0 finish features industry-exclusive powdercoat & clearcoat for brilliant durability
  • NEW rugged, all-welded, 2-piece aluminum hull w/pressed-in strakes & chines for structural strength & handling
  • Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull
  • Welded-in longitudinal stringer system for full-length support along the running surface
  • Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride
  • 2" (5.08 cm), heavy-duty extruded 1-piece gunnel for structural strength & rigidity
  • Pressure-treated floor & decks w/limited lifetime warranty
  • Flush-mount, carpeted, all-aluminum compartment lids for structural rigidity, tight fit & long-term durability
Electrical
  • Bow & console courtesy lights
  • Stowable navigation lights w/LED courtesy light at bow
  • 500 GPH (1,892.71 LPH) bilge pump
  • 2 battery trays
  • Interstate® batteries: 1 cranking & 1 trolling
  • 12V trolling motor harness & receptacle
  • Wiring system wrapped in abrasion-resistant protective conduit
Trailer
  • Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
  • Chrome wheels & matching hub covers w/13" (33.02 cm) radial tires
  • Hubs designed for quick & easy hub lubrication
  • Space-saving swing-away tongue to reduce storage length
  • Pivot-up locking jack w/swivel wheel
  • Heavy-duty winch w/nylon strap & bow safety strap
  • Outboard motor support to reduce hull & transom stress while towing
  • Heavy-duty upright load guides for easy, centered loading
  • Carpeted bunks to protect hull
  • Submersible LED lighting
  • Nylon tie-down straps (supplied w/boat package)
  • Safety cables
