2022
PARTY BARGE 22 RF XP3
PARTY BARGE 22 RF XP3
$79,995
-$2,000 (SPECIAL FINANCE CASH REBATE)
$77,995 *Offer Expires till the End of the Month
w/ 150 L FourStroke Mercury
Boat, Motor, Tandem Axle Brake x2 Trailer and Upgraded Cover ALL INCLUDED
+$6,000 200 L FourStroke
-$2,000 (SPECIAL FINANCE CASH REBATE)
$77,995 *Offer Expires till the End of the Month
w/ 150 L FourStroke Mercury
Boat, Motor, Tandem Axle Brake x2 Trailer and Upgraded Cover ALL INCLUDED
+$6,000 200 L FourStroke
Canadian Price
Photos may show optional equipment.
Specs and features subject to change without notice.
Specs and features subject to change without notice.
Description
Change your view of summer fun with the PARTY BARGE® 22 RF XP3!
With three 26” logs with lifting strakes and factory-installed underpinning, this pontoon boat can handle up to 200 horsepower—extra power for cruising and pulling a tuber! That rear-facing lounge provides the perfect place for a couple of spotters to enjoy the action.
For those slower moments, the other couches throughout invite all-day lounging. The STOW MORE™ seat storage system keeps everyone’s gear conveniently close, yet out of the way. And the new Bluetooth®-capable stereo provides a soundtrack to all the fun.
Ready to change your view of summer fun?

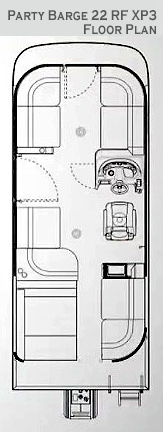

Specs & Layout
| Specifications | Specifications | |||
| Max. Person Weight | 1600 lbs. | Length | 24' 2'' | |
| Max. Person, Motor & Gear Weight | 2400 lbs. | Deck Length | 22' 1'' | |
| Interior Depth | 29.5'' | Deck Width | 8' 6'' | |
| Draft | 12'' | Max. Recommended HP | 200 HP | |
| Average Dry Weight | 2980 lbs. | Fuel Capacity | 52 gal. | |
| Average Package Weight | 4970 lbs. | Pontoon Log Length | 22' 3'' | |
| Package Height | 8' 11'' | Pontoon Log Diameter | 26'' | |
| Package Width | 8' 6'' | Pontoon Log Material | 0.100 5052 marine alloy | |
| Towing Length | 32' 4'' | Max. Person Capacity | 11 persons | |
| Storage Length | 32' 4'' | |||
Move pointer over boat to open/close compartments.
Videos & Photos
Photos
Features
COMFORT, CONVENIENCE & PEACE OF MIND
- 10+LIFE™ Limited Lifetime Warranty
- NMMA® certified
- NEW 10' (3.05 m) color-keyed SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights, protective boot & accepts optional drop-down changing curtain
- Storage pockets in Bimini top
- Nylon gate latches & heavy-duty hinges that open inward
- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- NEW mooring eye on starboard side for tie off
- NEW four 4.5" (11.43 cm) fold-down mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
CONSOLE
- Deluxe soft-touch sport steering wheel
- Wraparound sport shroud & tinted, removable windscreen
- Below-console cooler/storage space w/door & integrated pouch
- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad
- NEW AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 speakers integrated into Bimini top
- NEW USB/3.5 mm auxiliary input ports on console for direct stereo connection
- Tachometer, trim meter/speedometer & fuel & hour gauges
- Lighted rocker switches w/bilge switch
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
- Dark console color
INTERIOR
- The patented STOW MORE™ system features an added compartment in the seat back for increased storage
- Bow port couch w/STOW MORE™ system, underseat storage & NEW armrest w/drink holder
- Bow starboard couch w/STOW MORE™ system & underseat storage
- 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log
- Midship port L-lounge w/STOW MORE™ system & underseat storage
- High-back swiveling helm bucket seat, reclining & w/self-leveling arms
- Aft port rear-facing double lounge w/STOW MORE™ system, underseat storage & pop-up changing room
- Aft starboard couch w/STOW MORE™ system & lockable underseat storage
- Full-width aft swim deck
- Receptacle for optional ski tow pylon
- Woven 16-oz. (.45 kg) marine-grade flooring throughout
- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
- 2 movable drink holders/armrests
- Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
PERFORMANCE
- XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller
CONSTRUCTION & EXTERIOR
- Color: Copper Red or Indigo Blue fencing
- Exterior styling w/XP3 graphics package
- Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
- Rotomolded couches & backs for furniture w/Diamante Pepper accent
- Heavy-duty bow U-channel reinforcement behind deck trim
- Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- Protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Reinforced bow & stern structures
- Factory-installed underpinning (under-deck shielding) for improved performance
- Extruded anodized aluminum deck edging w/polished aft corner covers
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
- Port wheelchair-access gate
- Rear boarding platform w/4-step folding boarding ladder & grab rails
ELECTRICAL
- 500 GPH (1892.71 LPH) Ultima auto bilge pump
- Interior courtesy lighting
- NEW battery disconnect switch
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
