2022
90 True Timber Strata
90 True Timber Strata
[ Base Price- $4,190 ]
$6,079
-$1,000 (SPECIAL FINANCE CASH REBATE)
=$5,079 ( Includes FREIGHT and PREP )
$6,079
-$1,000 (SPECIAL FINANCE CASH REBATE)
=$5,079 ( Includes FREIGHT and PREP )
Canadian Price
Photos may show optional equipment.
Specs and features subject to change without notice.
Specs and features subject to change without notice.
Description

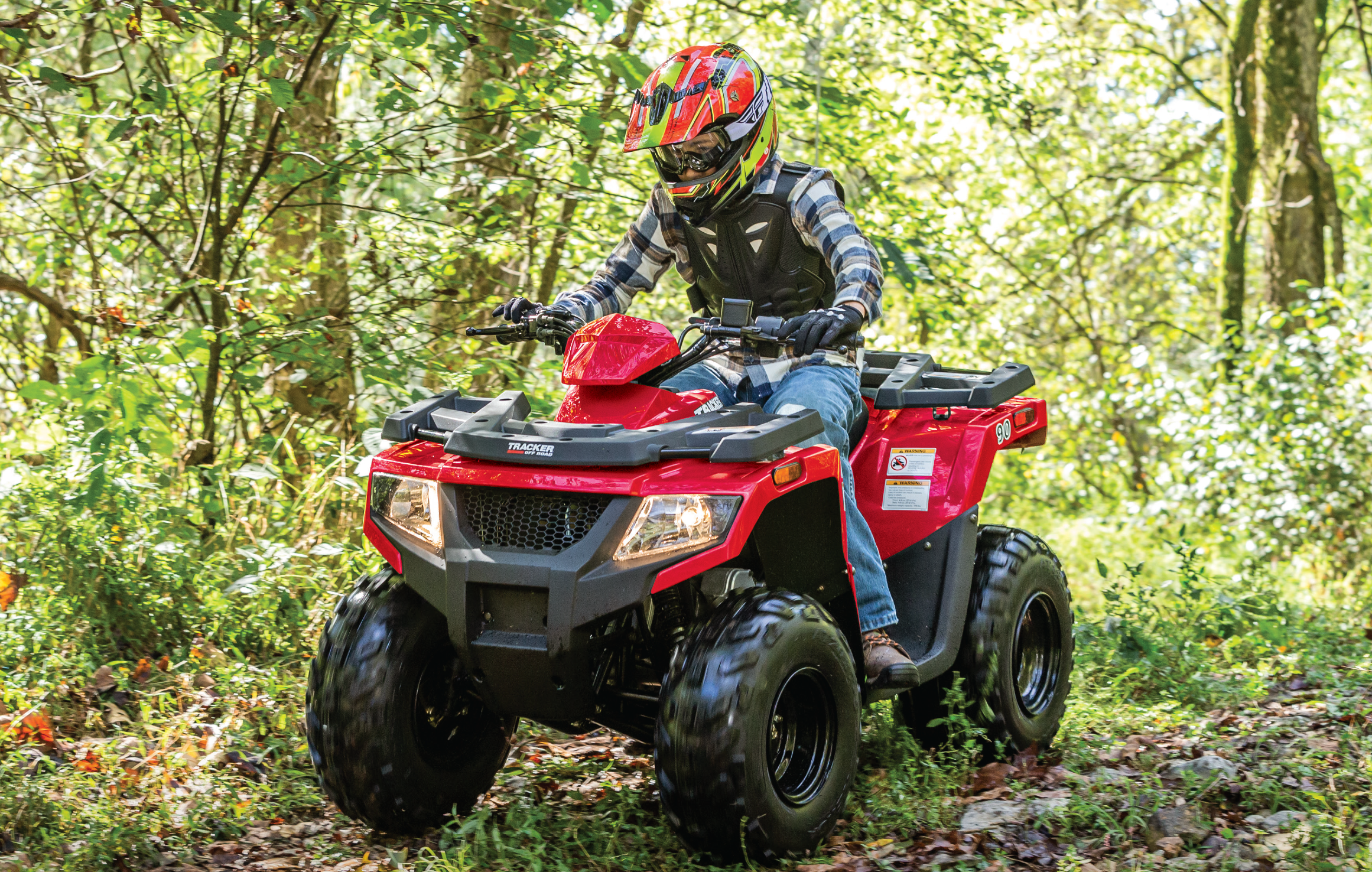

YOUTH-SIZED FOR FUN ON THE TRAIL
Young riders 10 and older will experience the quality and fun of a full-size ATV in this machine right-sized for them. Power is supplied by a 4-stroke, single overhead cam gas engine with a Duramatic automatic transmission, automatic choke, and speed-limiting governor. The TRACKER 90 is full of spirit and ready to play!
KEY FEATURES
- 90cc Air-Cooled, 4-Stroke, Single Overhead Cam, Gas Engine
- Automatic CVT (Continuously Variable Transmission) with Neutral and Reverse
- Electric Start and Kickstart Backup
- Self-Cleaning Rear Hydraulic Disc Brakes
- Adjustable Spring Preload Shocks
- 10 lb Front Rack and 15 lb Rear Rack Hauling Capacity
- Dual Headlights and Taillights
- Parent Adjustable Throttle/Speed Limiting Governor
- Safety Flag
Specs & Layout
| Specifications | Specifications | |||
| Wheels | Powder-Coated Steel | Engine Type | Air-Cooled, 4-Stroke, Single Overhead Cam, Gas Engine | |
| Total Capacity | 175 lb (79.4 kg) | Displacement | 90cc | |
| Front Rack | 10 lb (4.5 kg) | Drivetrain | CVT (Continuously Variable Transmission), Chain Drive | |
| Rear Rack | 15 lb (6.8 kg) | Drive System | 2WD | |
| Overall Length | 58.4 in (148.4 cm) | Fuel System | Carburetor | |
| Overall Width | 34.5 in (87.6 cm) | Gear Selection | F,N,R | |
| Overall Height | 37.25 in (94.6 cm) | Front Suspension | Single A-Arm with 2.8 in (7.1 cm) Travel | |
| Overall Weight | 260 lb (117.9 kg) (Dry) | Rear Suspension | Swing Arm with 2.9 in (7.4 cm) Travel | |
| Wheelbase | 38.4 in (97.5 cm) | Brake System | Front and Rear Hand Brakes | |
| Ground Clearance | 7.25 in (18.4 cm) | Parking Brake | Lockable Hand Lever | |
| Fuel Capacity | 1.5 gal (5.7 L) | Front Tires | 19x8.00-8 | |
| Color | Red/White/TrueTimber Strata-CAMO | Rear Tires | 19x8.00-8 | |
